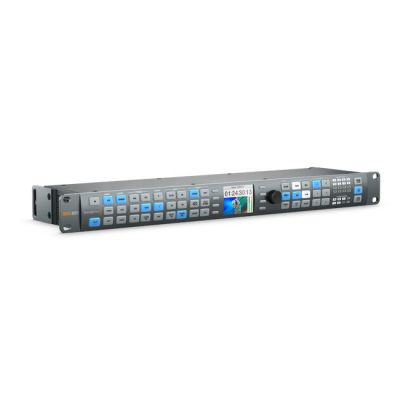

Blackmagic Design Teranex AV

$1,695.00

Shipping calculated at checkout.

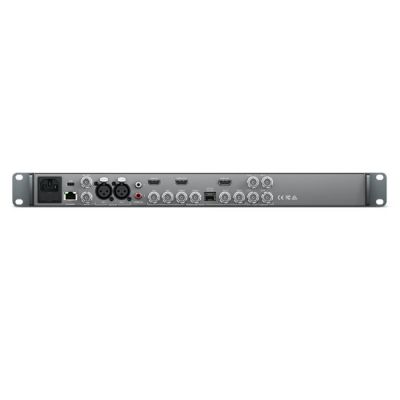

Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable duplicated output or dual link output for 4:2:2 3G or 6G Ultra HD.

4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link output when processor output video format is UHD. For other output formats, these connectors will supply four additional replicated SDI outputs.

1x HDMI 2.0 type A connector.

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

1x SFP Optical Fiber connector cage.

1x 10bit SD, HD, 3G HD, 2K, Ultra HD switchable.

1x 10bit SD, HD, 3G HD, 2K, Ultra HD switchable. Not available while operating in Dual Link or Quad Link output modes.

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs)

2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)

Dolby AC-3 pass through in all conversions. Dolby E pass through except during video frame rate conversions.

SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

1x BNC - Blackburst in SD or tri-level sync in HD.

1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.

USB type C port for software updates and Gigabit Ethernet RJ45 for remote control and configuration.

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

525i29.97 NTSC, 625i25 PAL

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

1080p50, 1080p59.94, 1080p60 levels A and B

2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.

Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD.

4:2:2

10-bit

REC 601, REC 709

525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.

]
