ATEM Television Studio HD
The ATEM Television Studio HD
The world’s first live production switcher for broadcast, professional and AV users!

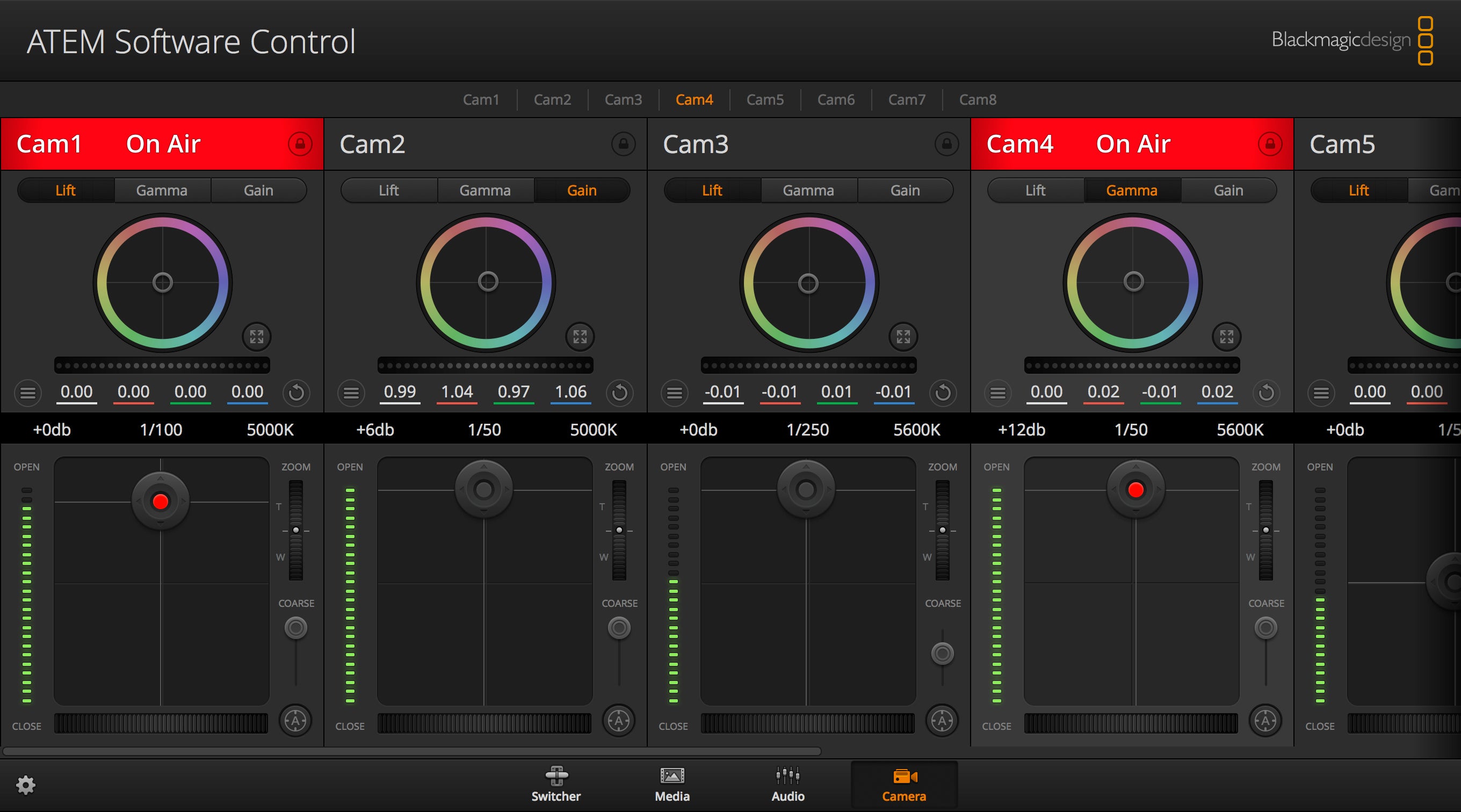

ATEM Television Studio HD is the first live production switcher designed for both broadcasters and AV professionals. It includes 4 SDI and 4 HDMI inputs so you can connect up to 8 sources, and it supports all formats up to 1080p60! Packed with high end broadcast features, ATEM Television Studio HD has re-sync on all inputs so you always get clean switching whether you’re using professional or consumer cameras. Plus, you get multi view output so you can see all of your sources, preview and program on a single screen, aux out, built in talkback, 2 still stores, an audio mixer, camera control unit and more! ATEM Television Studio HD is perfect for live production, episodic television, web shows, AV or even live coverage of video gaming competitions! Simply plug in your cameras, game consoles or computers and start switching live!
Live Production Switching
Turn any live event into a professional HD television program!
ATEM Television Studio HD is the fastest and most affordable way to create incredible HD programs immediately from live events! It’s perfect for broadcasters, professional sports, concerts, seminars, or even the new emerging generation of web broadcasters using platforms such as YouTube Live, Facebook Live and Twitch.tv. You can switch between multiple cameras, game consoles and computers in real time, all with broadcast quality transitions, graphics and effects! ATEM Television Studio HD features clean professional switching so there’s never a glitch when changing sources. That means you can even use it as a front end controller for your AV system and switch between multiple sources with the press of a button!

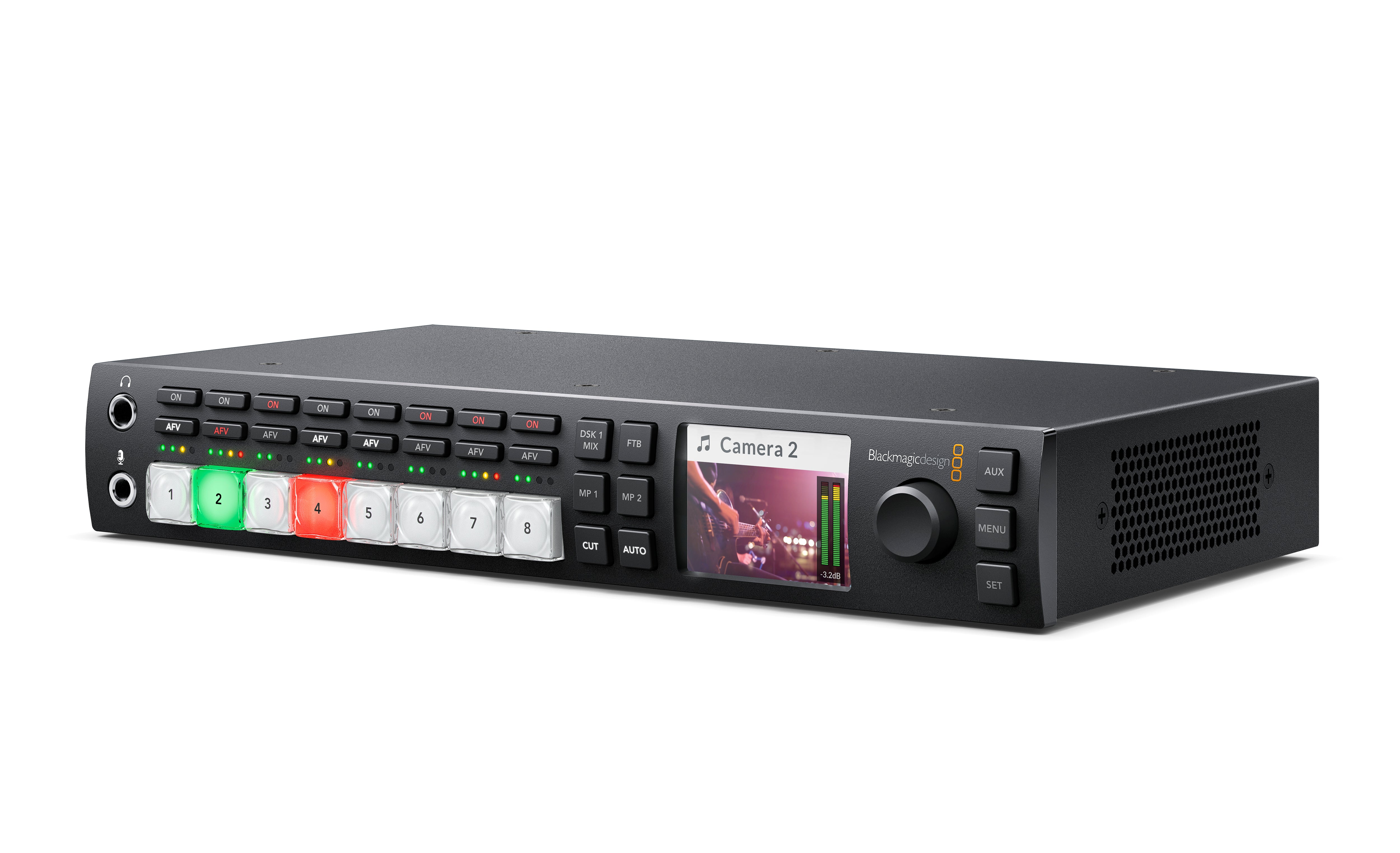

Extremely Portable Design
The world’s smallest all in one broadcast switcher!
ATEM Television Studio HD is a true professional switcher that’s incredibly tiny, making it compact and portable enough to use anywhere! The all in one design includes a built in AC power supply, full front panel controls with input source buttons for switching, a built in LCD screen, spin knob and more. It’s small enough to use on the desktop, or it can be mounted in equipment racks using the optional Teranex Mini Rack Shelf. That means it fits alongside other Blackmagic Design products such as Teranex Mini converters, HyperDeck Studio Mini recorders, Blackmagic MultiView 4 or Blackmagic Web Presenter, all in a single rack unit.

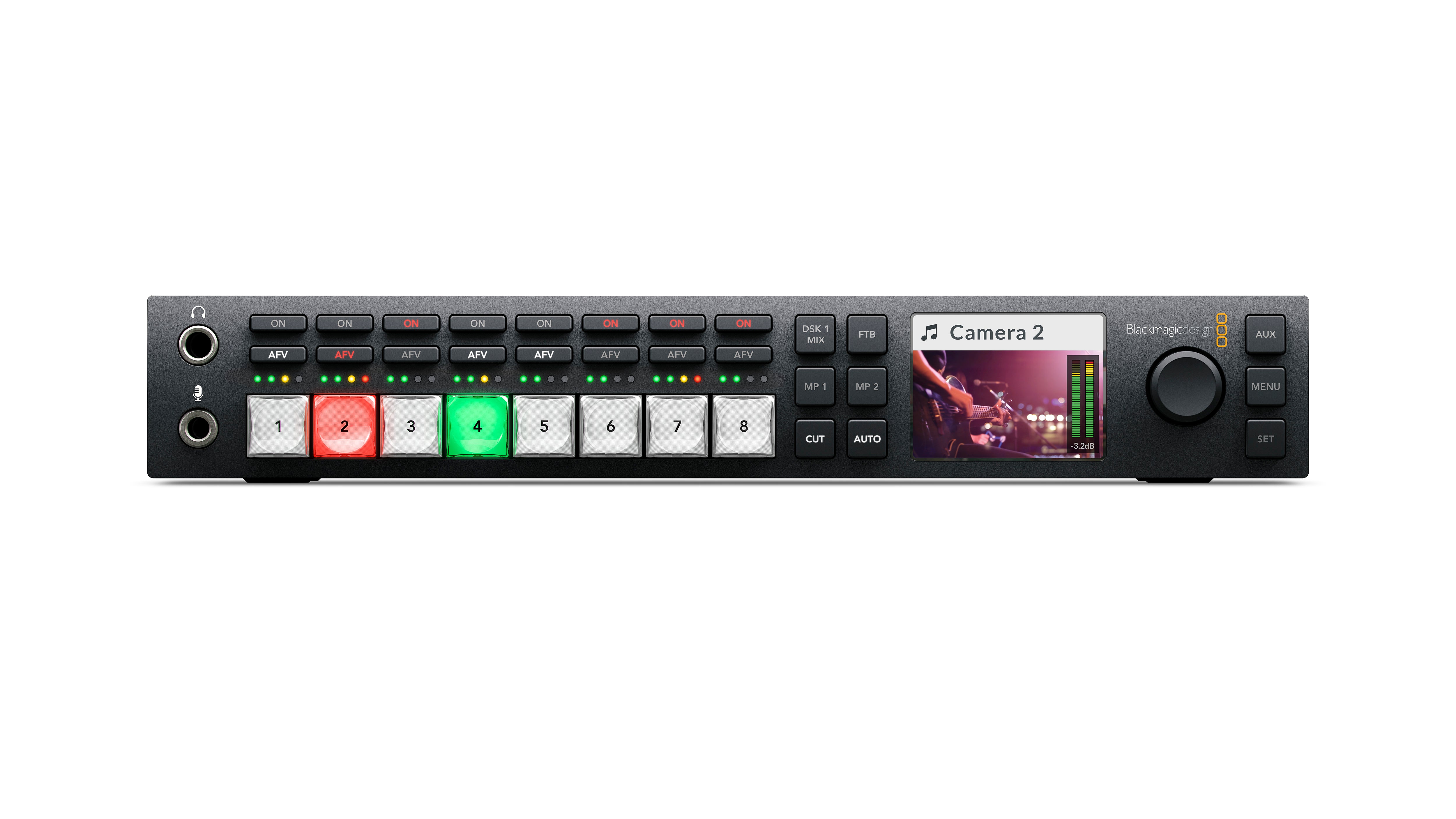

Front Panel Control
Operate all switcher features directly from the front panel!
The front panel controls on ATEM Television Studio HD feature 8 large illuminated buttons for switching, along with audio controls, buttons for the down stream keyer, fade to black, media players, and cut-bus style or automatic switching with transitions. That means you can create a program right from the front panel! It also makes ATEM Television Studio HD perfect for things such as professional AV installations where all you need is to simply switch between sources. The built in LCD screen lets you adjust all switcher features via menus, plus it can be used for video and audio monitoring, aux control and to display the audio channel you’re adjusting.

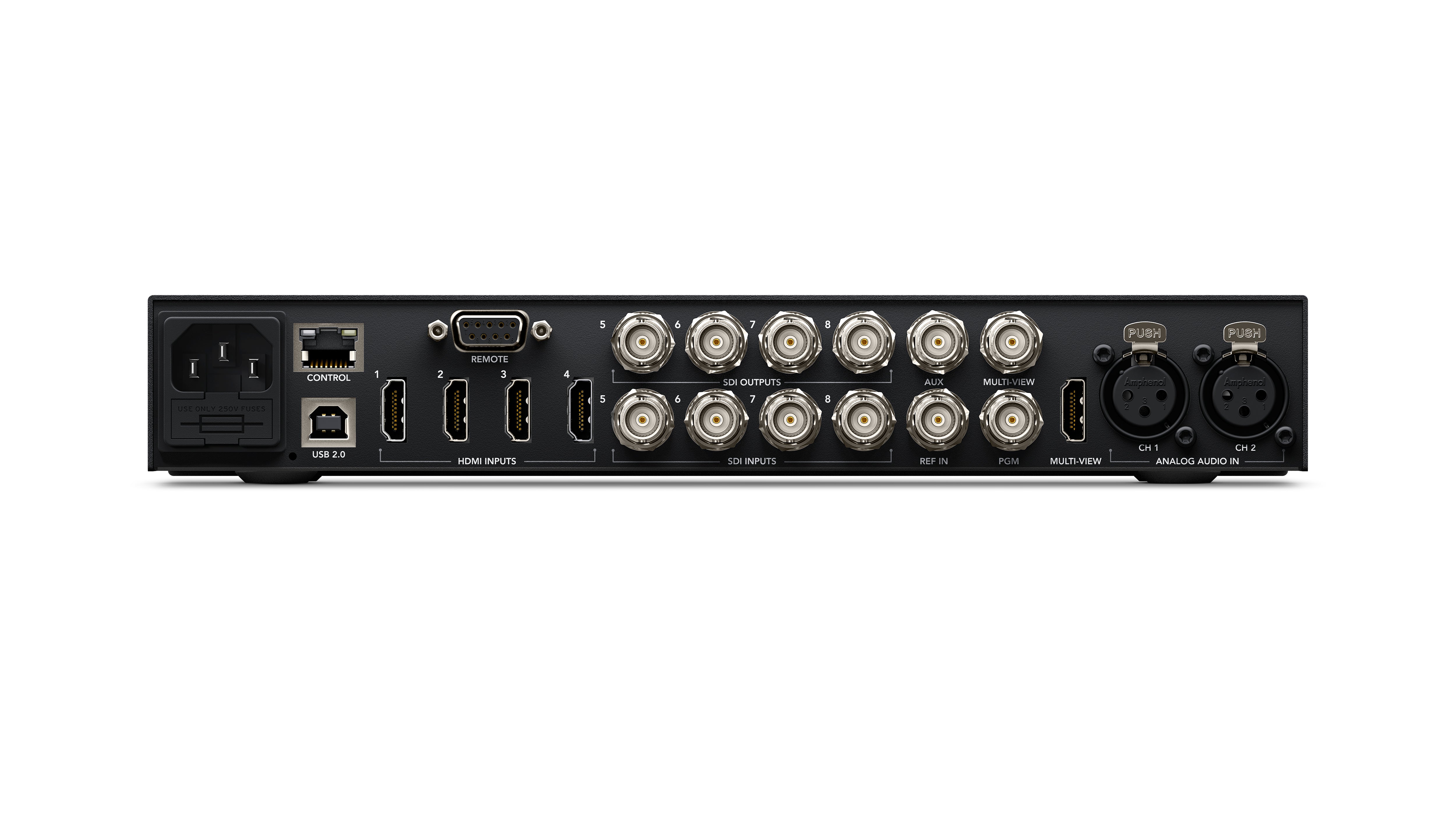

SDI and HDMI Inputs
Connect up to 8 cameras, game consoles or computers!
ATEM Television Studio HD is a professional broadcast SDI switcher that also includes loads of HDMI connections! With four 3G-SDI and four HDMI inputs, you can connect up to 8 cameras, game consoles, computers or other sources and work in all SD and HD formats up to 1080p60! That means you can start with affordable HDMI consumer cameras, or work with professional SDI broadcast cameras. You also get reference input, analog audio in, RS-422 PTZ control, and Ethernet for connecting hardware or software control panels! Unlike other switchers, all video inputs feature automatic frame re-synchronizers, so you don’t need expensive genlock cameras. This means you can plug in any video source and it just works!
Professional SDI Outputs
Broadcast quality connections that won’t hold you back technically.

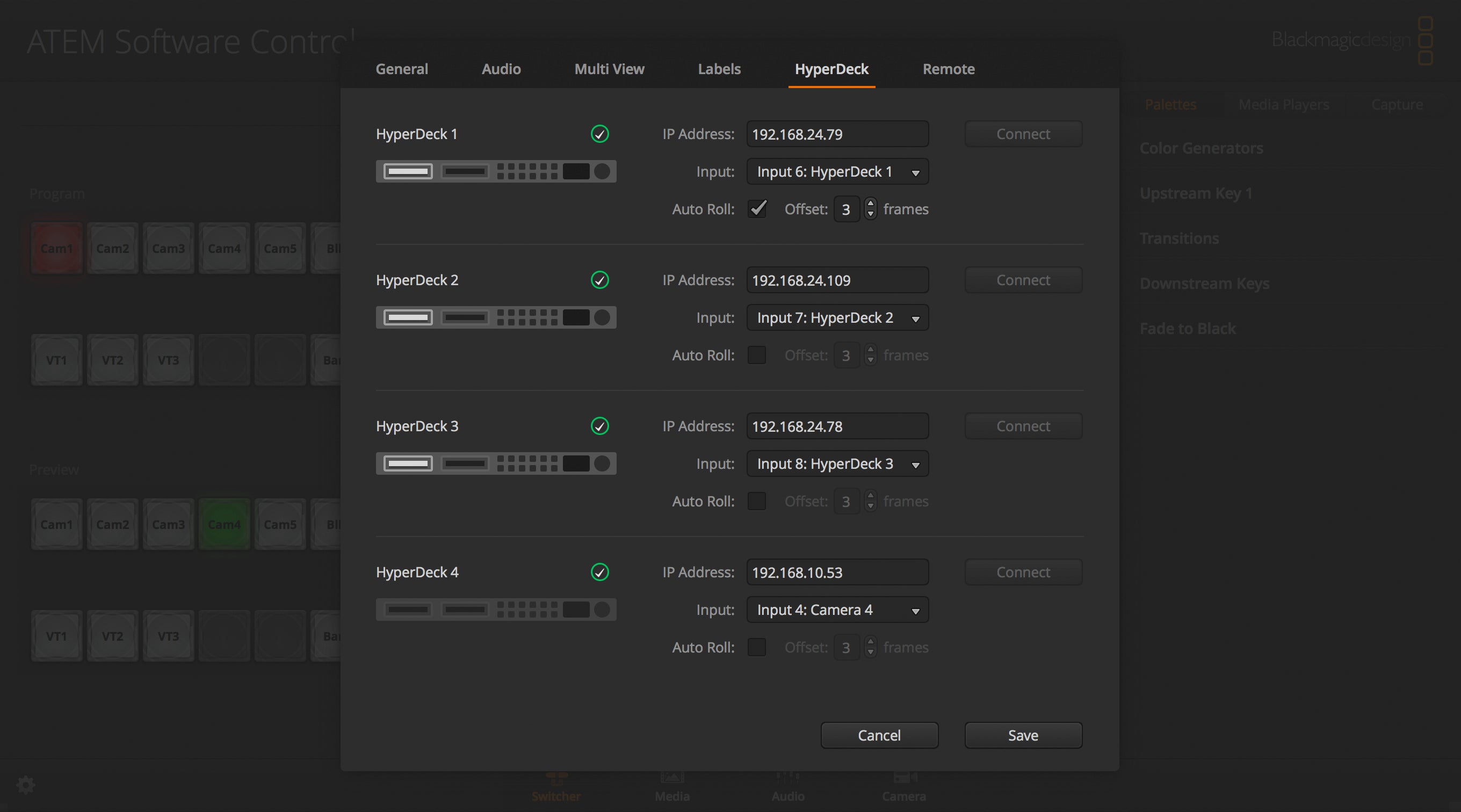

ATEM Television Studio HD includes professional SDI program and aux outputs, along with SDI and HDMI outputs for multi view monitoring. The SDI program output lets you connect your ATEM Television Studio HD to professional decks and recorders, like HyperDeck Studio Mini, so you can record your program at the highest possible quality. The multi view SDI and HDMI outputs make it easy to monitor your program on virtually any display, including consumer HD televisions! The Aux output lets you send your switched program or a clean feed without graphics and overlays out to another display, deck, or even massive screens on stage behind a performer!
Connections
Total Video Inputs - 8
Total Outputs - 8
Total Aux Outputs - 1
SDI Rates
270Mb, 1.5G, 3G.
Total Audio Inputs
2 x XLR.
Total Audio Outputs
None, embedded audio only.
Timecode Connections
None.
SDI Video Input
4 x 10-bit SD/HD switchable. 2 channel embedded audio.
HDMI Video Input
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 8 inputs.
SDI Program Output
5 x 10-bit SD/HD switchable.
HDMI Program Output
None.
SDI Audio Output
2 Ch embedded into SDI output.
Computer Output
None.
Qty of Multi-Views
1
Outputs per Multi-View
1 x HD-SDI and 1 x HDMI.
Control Panel
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software.
SD Format Support
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
HD Format Support
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94,
1080i50, 1080i59.94
Ultra HD Format Support
None.
SDI Compliance
SMPTE 259M, 292M and 424M.
Video Sampling
4:2:2 10-bit
Color Precision
4:2:2 10-bit
Color Space
4:2:2 YUV
HDMI Input Resolutions for Computers
720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Colorspace Conversion
Hardware based real time.
Processing Delay
6 Lines.

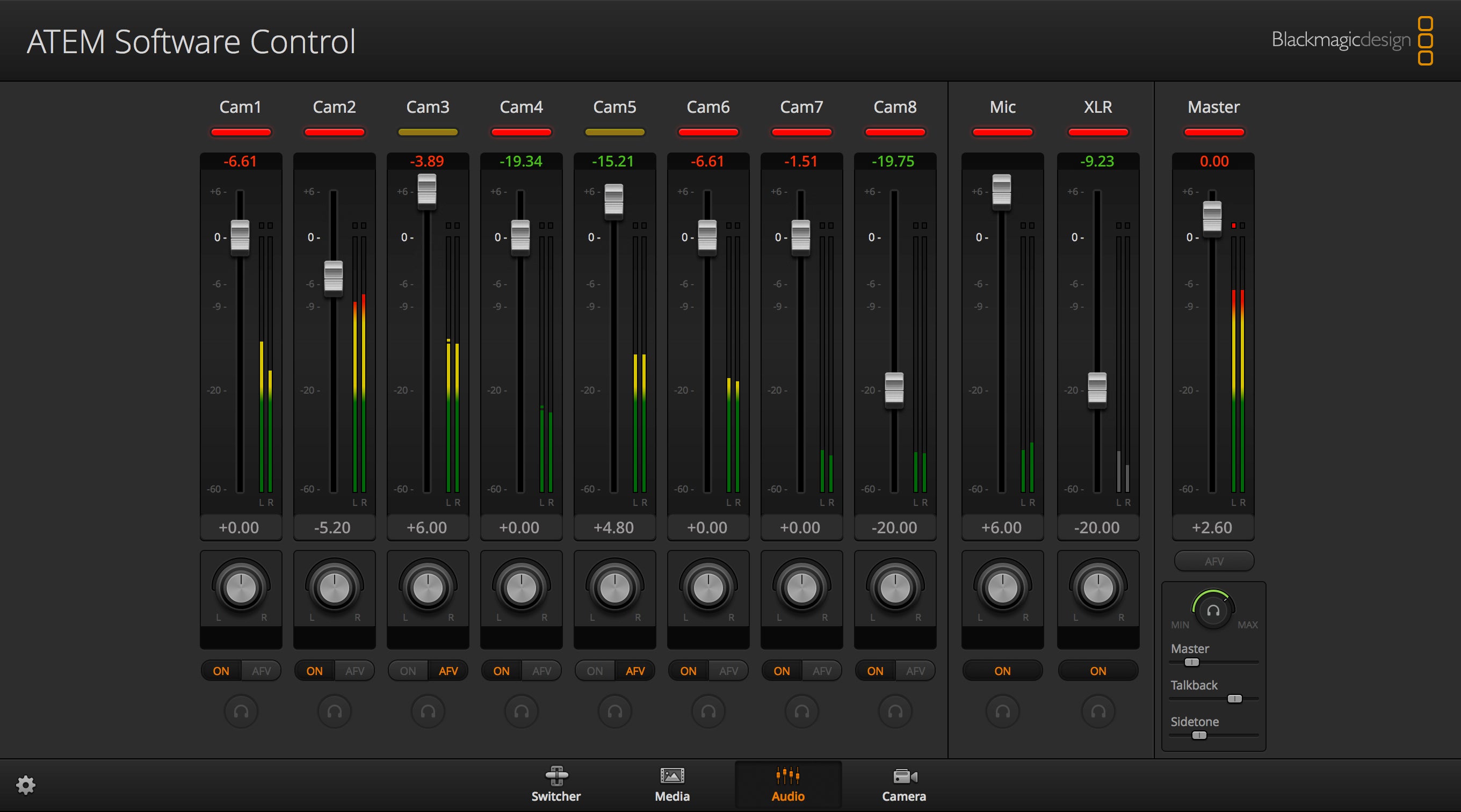

Audio Mixer
10 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
Software
Control Panel Included

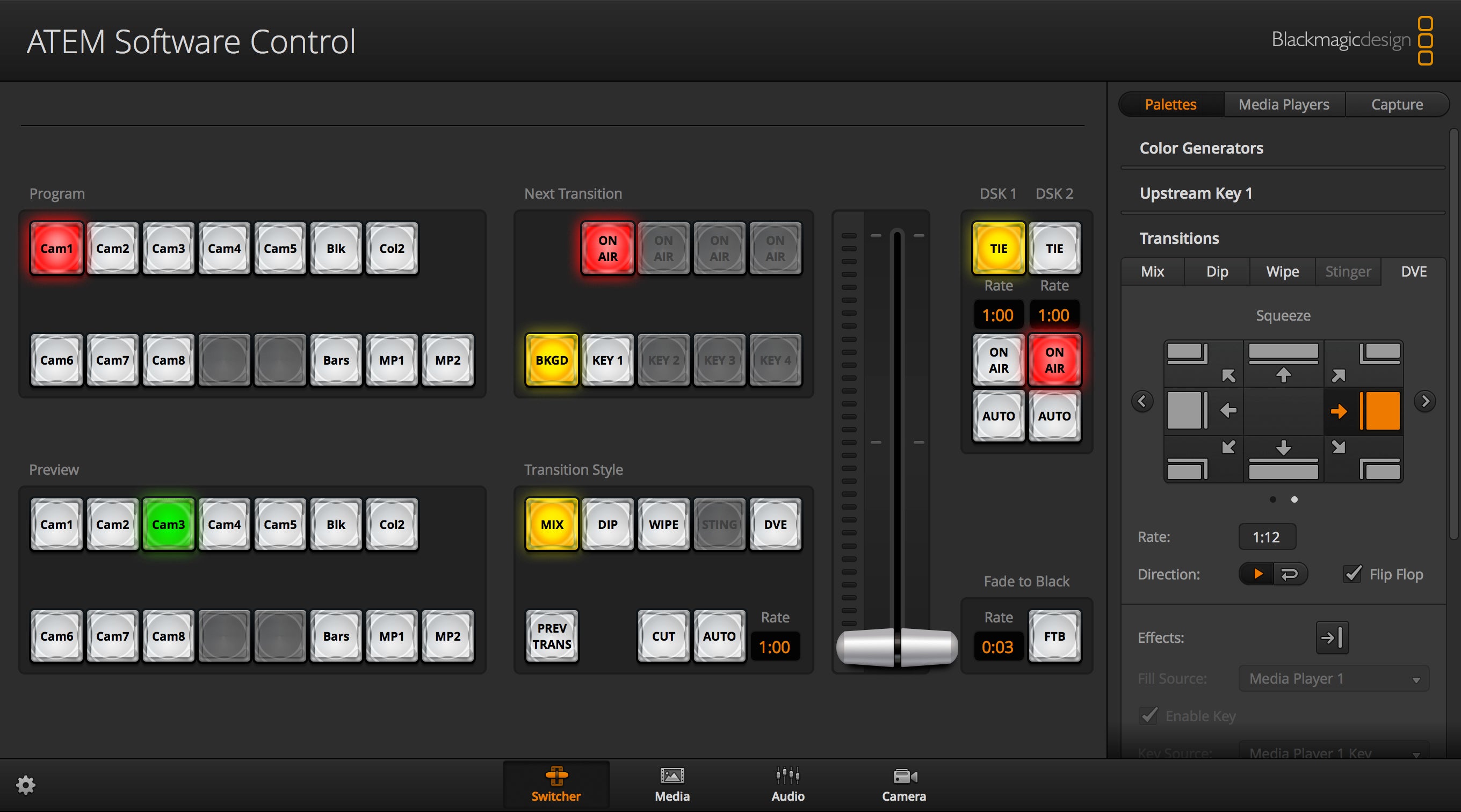

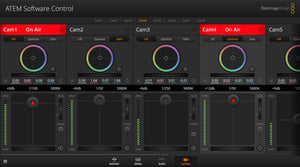

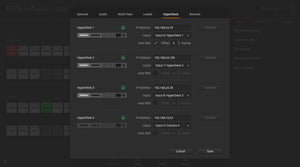

ATEM Software Control Panel included free for Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software Updates
Using USB connection directly connected to Mac OS X or Windows computers or via ethernet. Includes ATEM Switcher Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Product Specifics
Upstream Keyers
1
Downstream Keyers
2
Chroma Keyers
1
Linear/Luma Keyers
3
Transition Keyer (Stinger/DVE)
0 and 1
Total Number of Layers
5
Pattern Generators
2
Color Generators
2
DVE with 3D Borders & Drop Shadow
1
Interface
Minimum monitor resolution of 1366 x 768.
Number of Windows
1 x 10
Routable Windows
8 routable and 2 fixed for Program and Preview.
Tally
Red for program and green for preview indication.
Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Windows Source Labels
Yes
Control Panel Compatibilty
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.

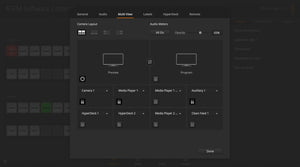

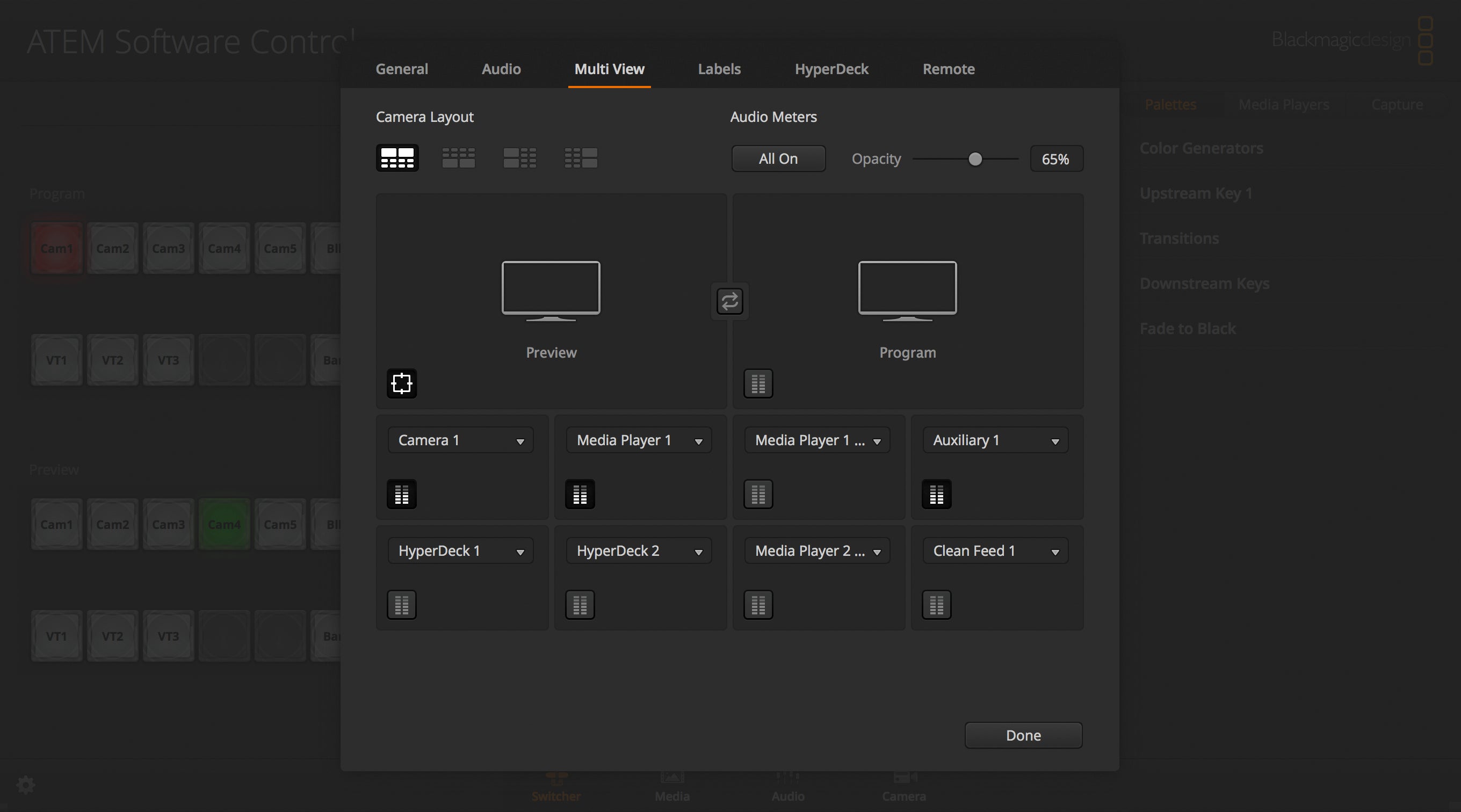

Multi View Monitoring
Multi View Monitoring
1 x 10 Views.
Multi View Video Standard
HD

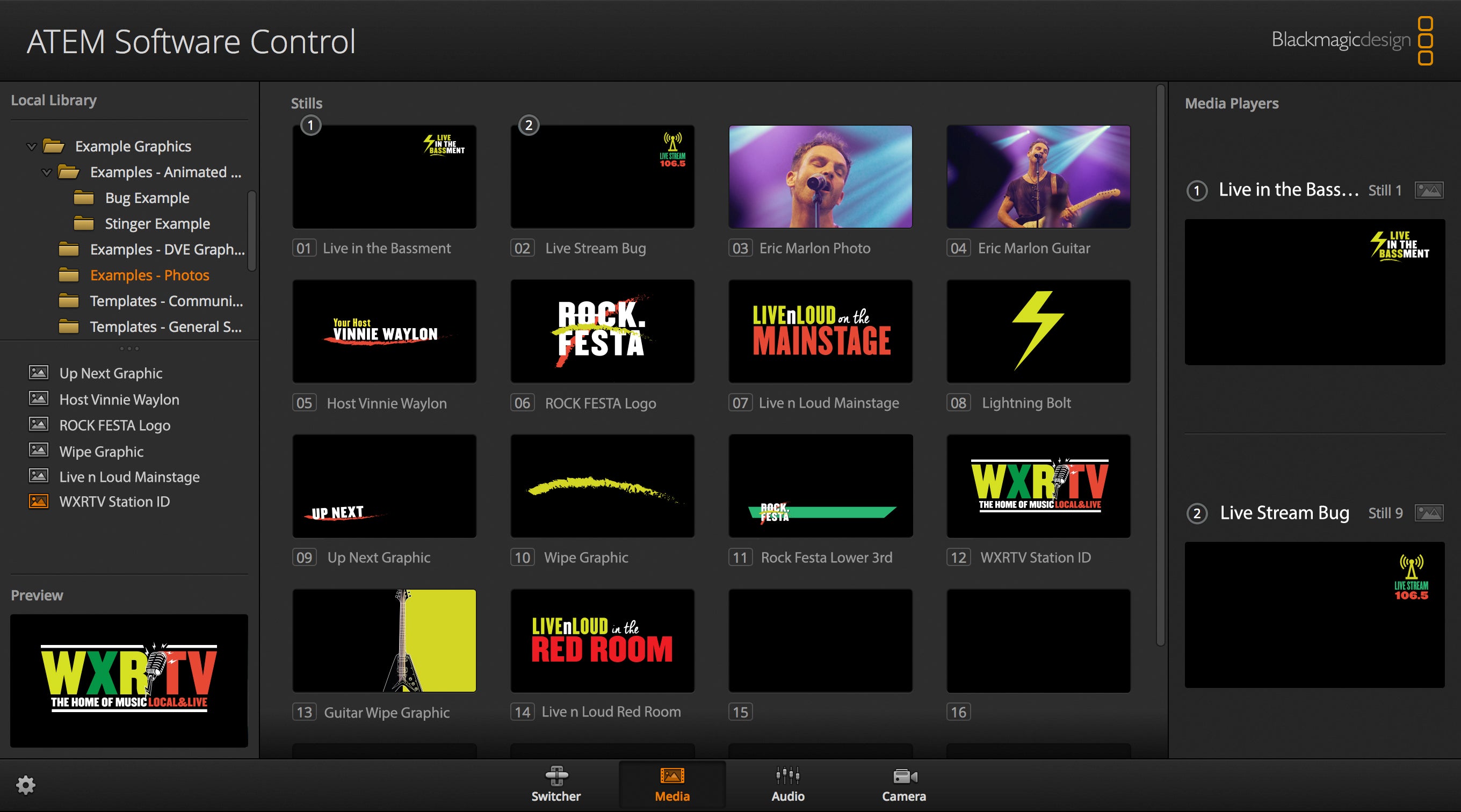

Media Player
Media Players
2
Channels
Fill and key for each Media Player.
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Clip Capacity
None.
Media Player Clip Length in 720 HD
None.
Media Player Clip Length in 1080 HD
None.
Media Player Clip Length in Ultra HD
None.
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
None.
Media Pool Audio File Format
None.
Software
Software Updates
Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 64-bit or Windows 10 64-bit.
Power Requirements
Power Supply
1 x internal 110 – 240V AC
Power Usage
40W
What's Included
ATEM Television Studio HD
SD card with software and manual
Warranty
12 Months Limited Manufacturer's Warranty.
Repair policy
Warranty details can be found in the ATEM Switchers Operation Manual in the support page at www.blackmagicdesign.com.
]
