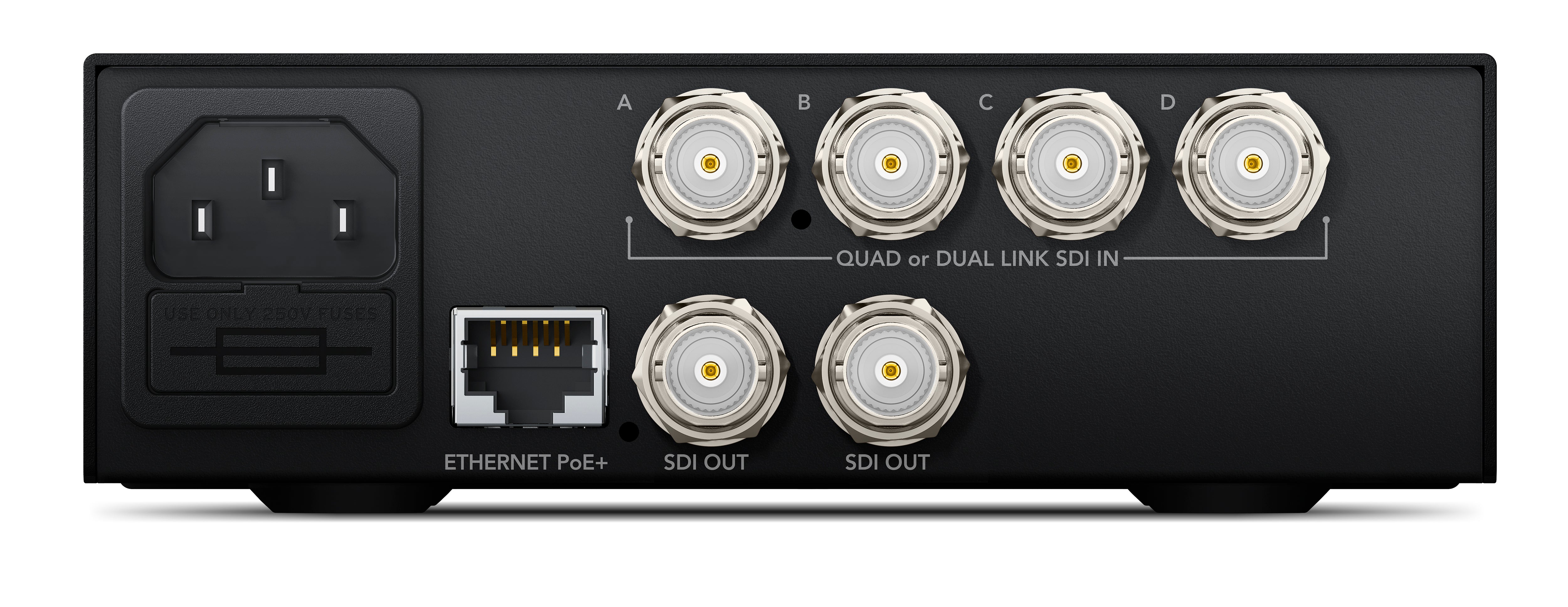

Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.
Connections:
Standards:
Software
Settings Control
Power Requirements
Environmental Specifications
What's Included:
Warranty
Standards:
· SD Format Support
o 525/29.97 NTSC, 625/25 PAL
· HD Format Support
o 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
· 2K Format Support
o 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
· Ultra HD Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
· 4K Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
· SDI Compliance
o SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
· SDI Video Rates
o SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
· SDI Video Sampling
o 4:2:2 and 4:4:4
· SDI Audio Sampling
o Television standard sample rate of 48 kHz and 24-bit.
· SDI Color Space
o YUV & RGB
