*** Note: This product does not include a power supply
This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector, or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48
1 x SD, HD or 3G-SDI.
1 x SDI loop out.
HDMI Type A out.
Auto detection of SD or HD.
USB Type‑C
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI video connections are switchable between standard definition, 720p 1080i, 1080p, and DCI high definition.
4:2:2
YUV
Automatically detects SD, HD and level A or B for 3G‑SDI.
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
YUV
Mac OS X™ and Windows™ software upgrade via USB.
Via USB.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10.
Via software utility.
1.60 Watts
4.4V to 5.25V DC
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing

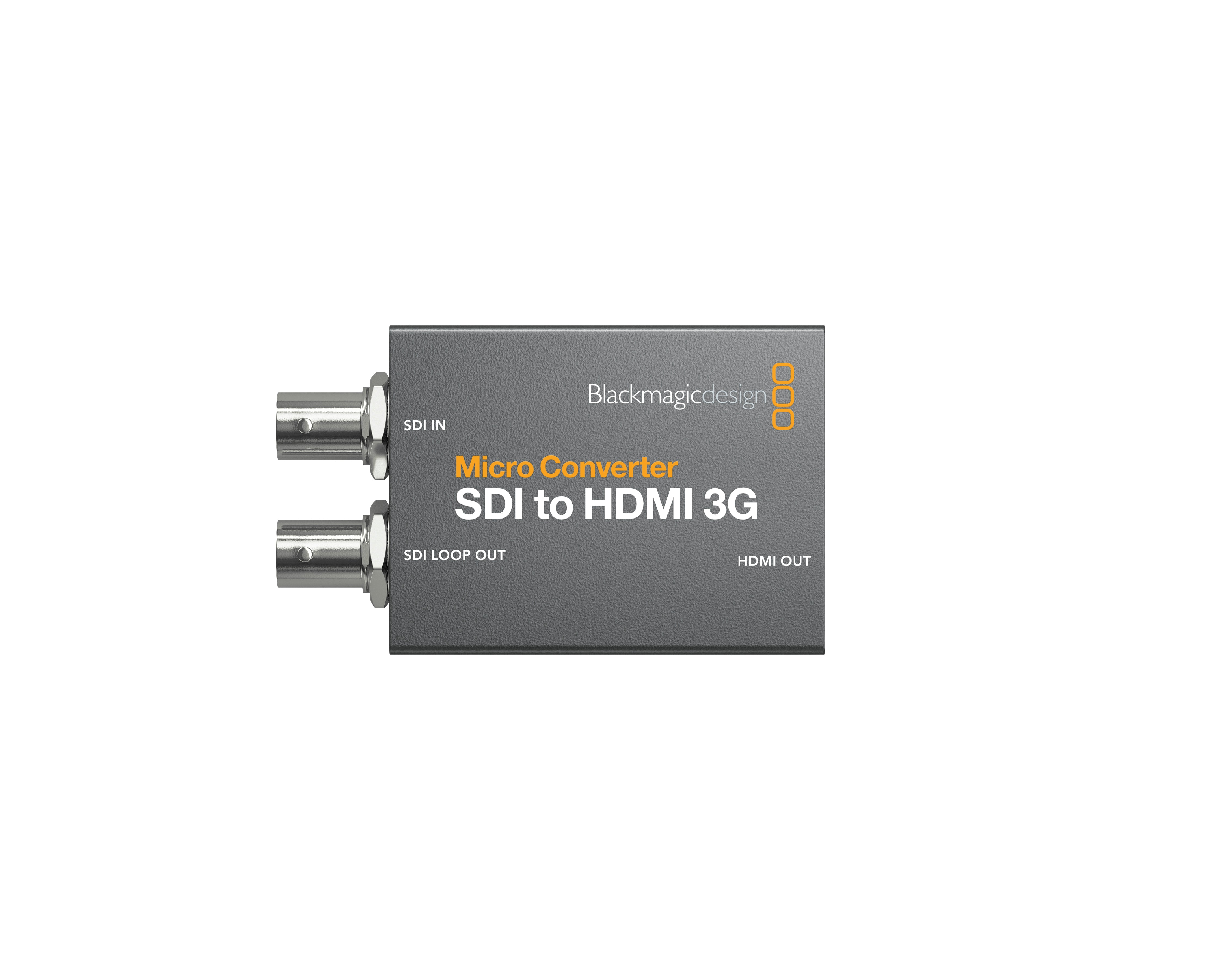

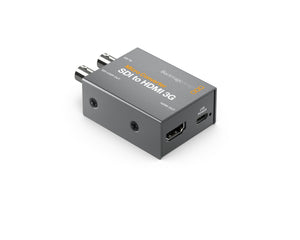

Micro Converter SDI to HDMI
3 Year Limited Manufacturer's Warranty.
