The BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard) takes HDMI or HD-SDI signals and converts them live to NDI (Network Device Interface). It supports plug-and-play operation and can be powered via AC, DC, or Ethernet (PoE). The converter can be implemented on a device and external tally displays. Configuration and software updates are easily achieved via a web interface and software updates can be applied to all BirdDog devices simultaneously.
The Studio NDI is universally compatible with any NDI compliant device including NewTek TriCaster and VMix live production systems. Remote cameras can easily be removed outside of the studio as the connection from BirdDog Studio NDI to your live show is via the standard Ethernet network. The Studio NDI can display tally onboard and externally via Tally out. Thanks to the improved NDI integration, it can provide both Program and Preview tally indicators.
SDI/HDMI to NDI (Network Device Interface) converter
SDI/HDMI cross converter

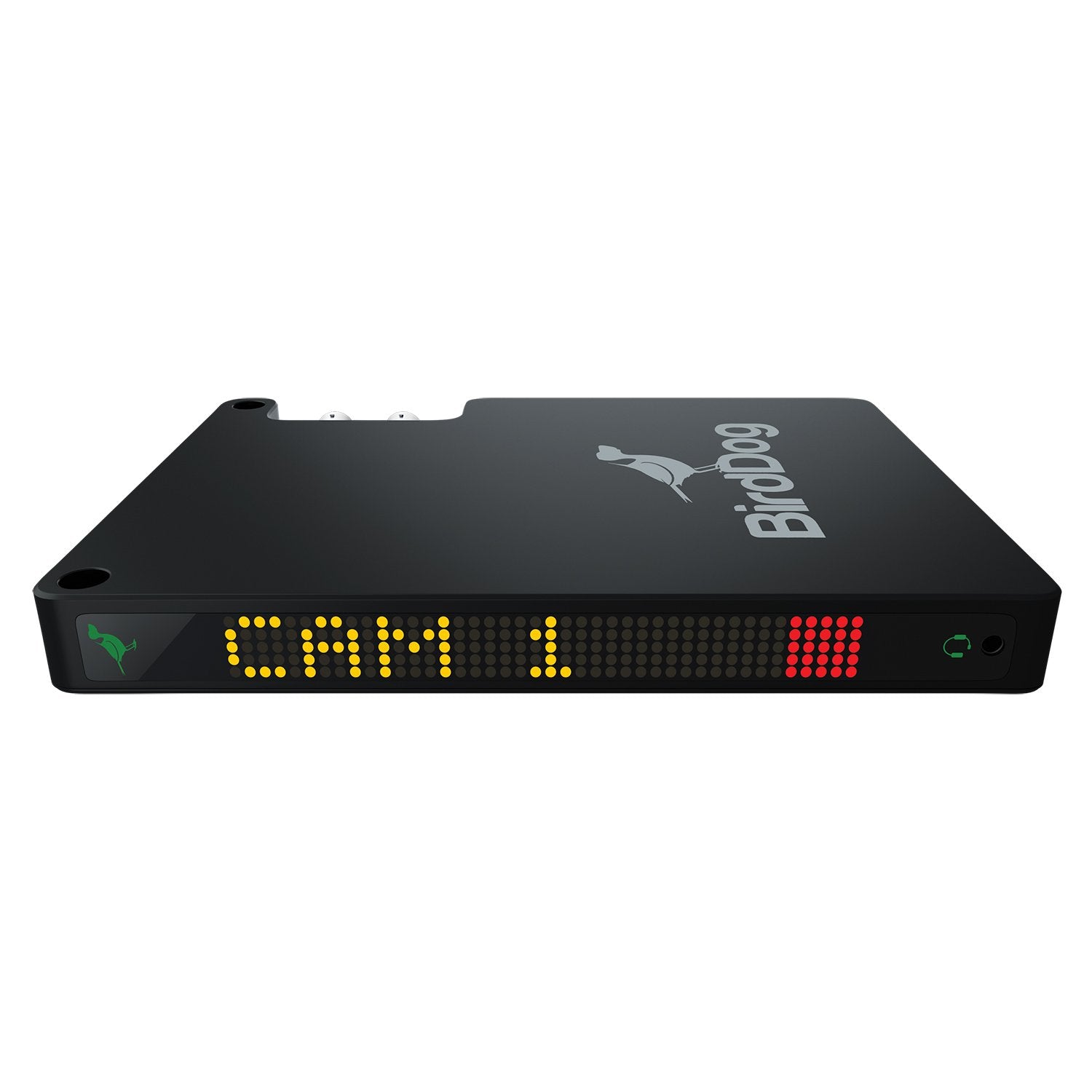

Onboard full screen & external tally light interface
802.3af/802.3at PoE (Power over Ethernet) compliant
SD, 720P, 1080i, and 1080p standards support
Flexible power options including PoE (Power over Ethernet)
Central management software interface (mobile and web)

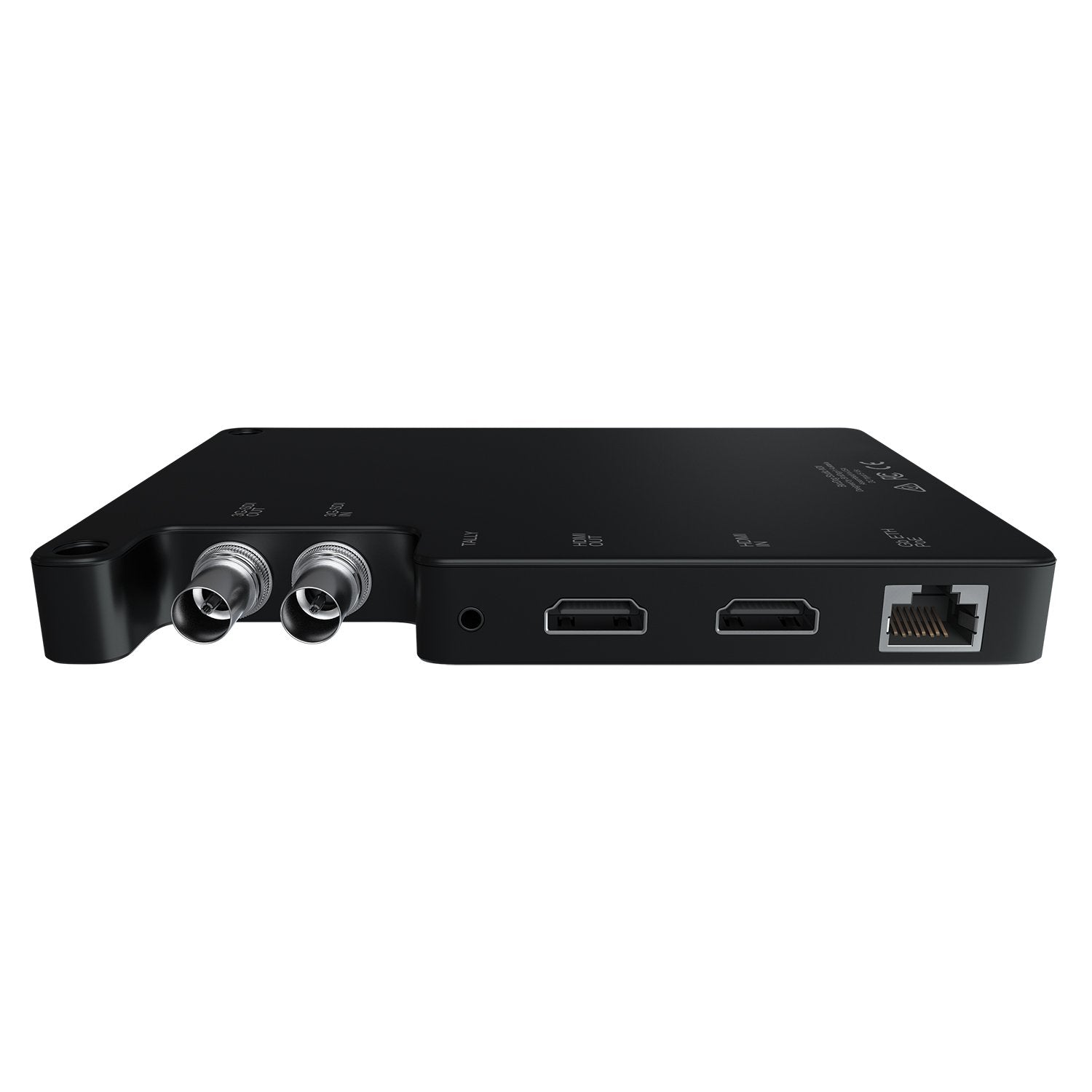

HDMI 1.4 and 3G-SDI inputs and outputs
Simple plug-and-play operation
Compatible with all NDI compliant equipment
Access video resources such as cameras, PCs, consoles, and Blu-ray players from anywhere in the facility
Easily integrate tally into productions, even outside the studio

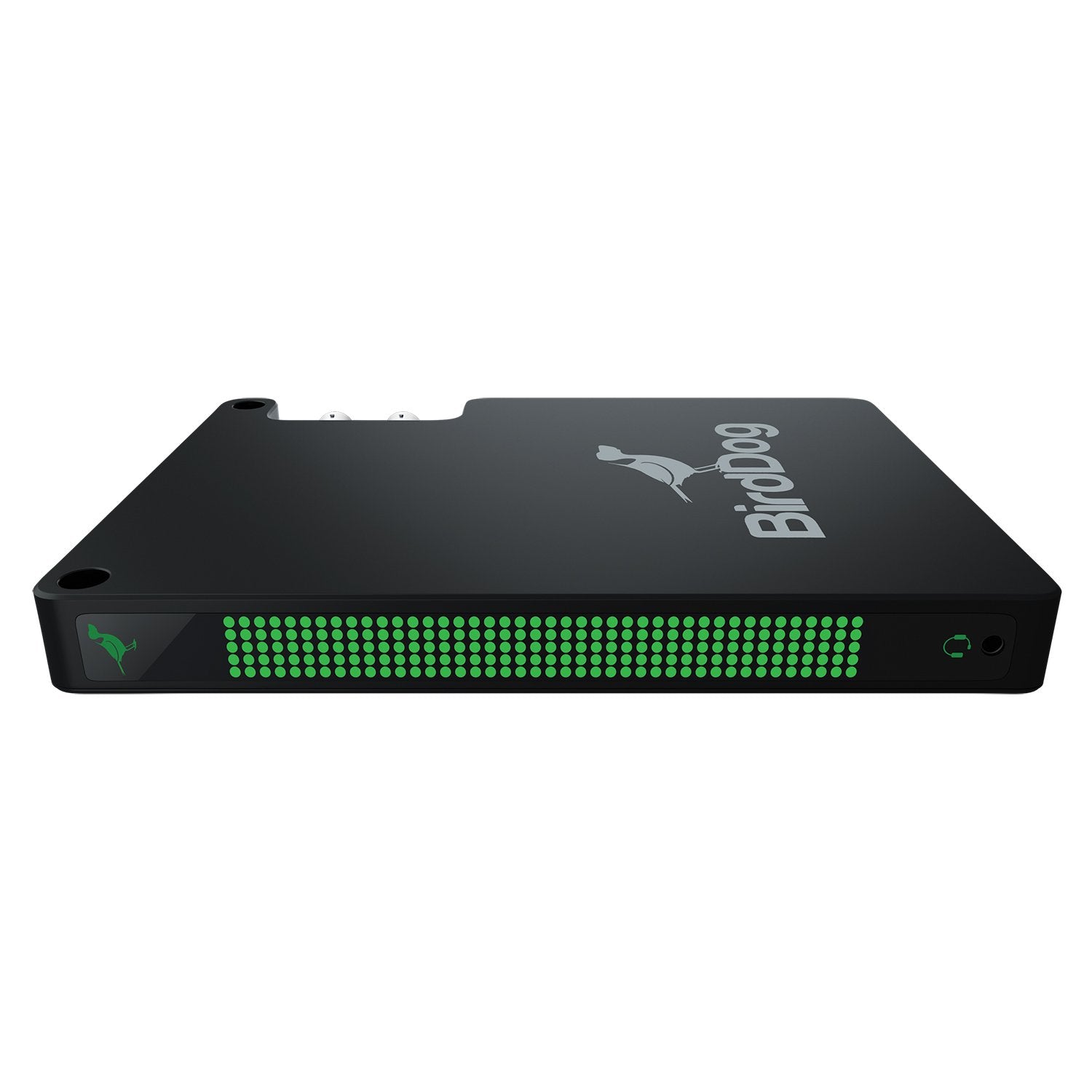

Simply set the display to be full screen tally or split screen to show both information and tally
Control and configure multiple BirdDog Studio NDI devices through our admin panel which is accessible via a web browser on both mobile devices and desktops
SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa
Connect a monitor to BirdDog Studio or simply use to loop out
Video Inputs
HDMI
HD-SDI
Video Outputs
HDMI
HD-SDI
Suported Resolutions
1080p 29.97/25
1080i 59.94/50
720p 59.94/50
SD PAL/NTSC
Video Protocol Support
NDI Realtime Encoding
Audio
Embedded via SDI/HDMI
Network
1000baseT
Power
802.3 PoE Compliant
2-pin 8-24v DC with D-Tap adapter
External Tally
3.5mm GPIO 2 position (Program/Preview)
Display
5x35 LED Display
3 Selectable modes (Info, Tally, Multi-Tally)
Configuration
Web Based
(Mobile and Desktop compatible)
Physical Dimensions
105mm (W) x 150mm (H) x 19.5mm (D)
